DOGGING ASSEMBLY
FOR QA SPRING BALANCED HATCHES

803 JE5097 AND JE1926
805 JE5097 AND JE6021

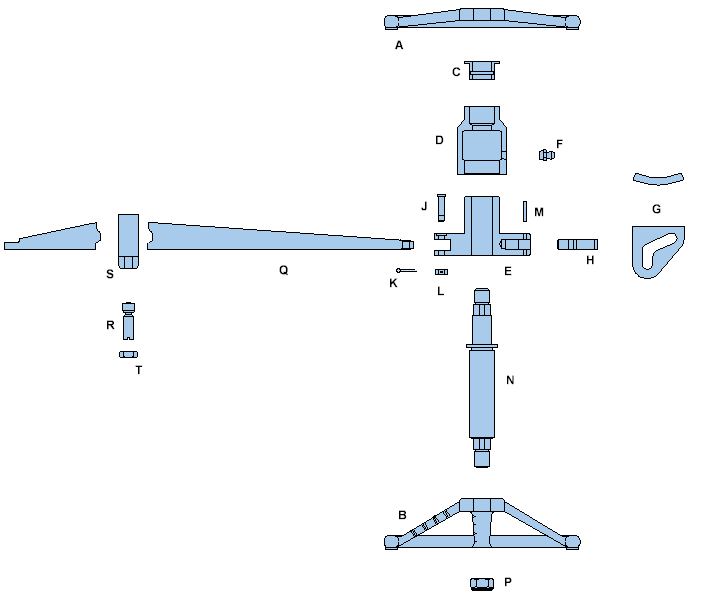

GENERAL NOTES:
  1. USED ON RAISED, QA SPRING BALANCED HATCHES
  2. MOST PARTS ARE THE SAME FOR ALL HATCH SIZES BUT DOGS ARE UNIQUE TO EACH HATCH
  3. SYMMETRICAL 803 HATCHES AND ALL 805 HATCHES USE FOUR IDENTICAL DOGS; ASYMMETRICAL 803 HATCHES USE TWO MATCHED PAIRS OF DOGS


JUNIPER HATCHES
DOGGING ASSEMBLY
FOR QA SPRING BALANCED HATCH

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

DOGGING ASSEMBLY QUICK PARTS SELECTOR

CLICK IN LISTING OF A DOGGING ASSEMBLY OR OR WEAR PARTS KIT
TO DISPLAY THE LIST OF PARTS.
THE SCREEN WILL DISPLAY ONE ARROW FOR EACH UNIT OF EACH REQUIRED PART.
JUST SCROLL DOWN TO SEE THE RESULTS.
COMPLETE PARTS KITS
COMPLETE DOGGING ASSEMBLY FOR 24 x 24 SPRING BALANCED HATCH JE5097 ASSY 2
CLICK TO SEE PARTS IN THIS ASSEMBLY
JEKTHR-102
COMPLETE DOGGING ASSEMBLY FOR 24 x 30 SPRING BALANCED HATCH 803 JE5097 ASSY 1
CLICK TO SEE PARTS IN THIS ASSEMBLY
JEKTHR-101
COMPLETE DOGGING ASSEMBLY FOR 24 x 30 SPRING BALANCED HATCH 805 JE5097
CLICK TO SEE PARTS IN THIS ASSEMBLY
JEKTHR-105
COMPLETE DOGGING ASSEMBLY FOR 24 x 30 SPRING BALANCED HATCH 805 JE6021
CLICK TO SEE PARTS IN THIS ASSEMBLY
JEKTHR-104
COMPLETE DOGGING ASSEMBLY FOR 30 x 30 SPRING BALANCED HATCH 803 JE1926
CLICK TO SEE PARTS IN THIS ASSEMBLY
JEKTHR-103
WEAR PARTS KITS
DOGGING WEAR PARTS KIT FOR 24 x 24 SPRING BALANCED HATCH 803 JE5097 ASSY 2
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-502
DOGGING WEAR PARTS KIT FOR 24 x 30 SPRING BALANCED HATCH 803 JE5097 ASSY 1
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-501
DOGGING WEAR PARTS KIT FOR 24 x 30 SPRING BALANCED HATCH 805 JE5097 ASSY 1
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-505
DOGGING WEAR PARTS KIT FOR 24 x 30 SPRING BALANCED HATCH 805 JE6021
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-504
DOGGING WEAR PARTS KIT FOR 30 x 30 SPRING BALANCED HATCH 803 JE1926
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-503
INDIVIDUAL COMPONENTS
KEY ITEM JUNIPER
PART NUMBER
QUANTITY IN
SELECTED KIT
QUANTITY
A UPPER HANDWHEEL JE5098-37
B LOWER HANDWHEEL JE5098-17
C FLANGED BEARING JE5098-68
D STAINLESS STEEL HOUSING JE5098-24
STEEL HOUSING JE6023-25
E SPIDER JE6022-28
F GREASE FITTING JE5097-49
G DOG CAM JE6023-27
H SPIDER PIN JE6022-29
J DOG BOLT JE5098-9
K COTTER PIN JE5097-11
COTTER PIN JE6021-12
L JAM HEX NUT 5/16" ID JE5097-10
M SPRING PIN JE097-29
SPRING PIN JE5097-29
N SPINDLE JE5098-18
P HEX NUT JE5097-58
Q 13-3/4 INCH DOG FOR 24 X 30 HATCH JE6023-8
13-7/8 INCH DOG FOR 24 X 24 HATCH JE5098-72
15-3/8 INCH DOG FOR 24 X 30 HATCH JE5098-71
15-3/4 INCH DOG FOR 24 X 30 HATCH JE5098-8
18-1/8 INCH DOG FOR 30 X 30 HATCH JE1926-7
R SHOE AND SCREW ASSEMBLY JE5098-1314
S FULCRUM JE6022-13
T JAM HEX NUT 1/2" ID JE097-15
