JUNIPER HATCHES




JUNIPER DOGGING PARTS
FOR 803 AND 805 SERIES RAISED QA HATCHES


Raised QA hatch dogging parts

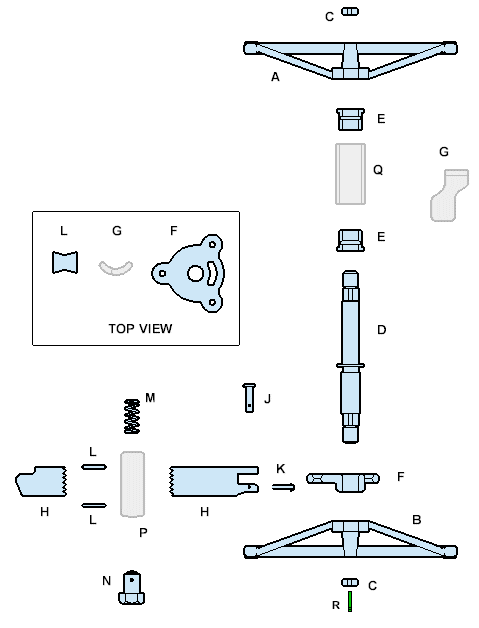

HATCH QA DOGGING MECHANISM
FOR TYPICAL RAISED QA HATCH

GENERAL NOTES:
  1. DOGGING MECHANISM PARTS LISTED BELOW ARE USED WITH BOTH LOW COAMING AND HIGH COAMING HATCHES
  2. WHETHER YOU NEED SOME OR ALL OF THE REPLACEMENT PARTS FOR A PARTICULAR HATCH, OUR QUICK PARTS SELECTOR MAY BE THE BEST WAY TO DETERMINE THE NUMBER OF PARTS YOU SHOULD ORDER




DOGGING MECHANISMS PARTS
FOR QA RAISED HATCHES

COMPLETE MECHANISMS INCLUDE ALL PARTS ILLUSTRATED
WEAR PARTS IN BLUE ARE AVAILABLE INDIVIDUALLY
OR AS KITS AS DESCRIBED BELOW

CLICK HERE FOR A GENERIC ORDER FORM

DOGGING MECHANISM QUICK PARTS SELECTOR

CLICK BELOW LISTING OF PREFERRED ASSEMBLY
TO DISPLAY THE LIST OF PARTS OR WEAR PARTS FOR THAT KIT
DOGGING MECHANISM PARTS ARE THE SAME FOR LOW AND HIGH COAMING HATCHES.

COMPLETE DOGGING ASSEMBLY
DOGGING ASSEMBLY FOR 803 SERIES JE6120-HR HATCH
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-106
DOGGING ASSEMBLY FOR 805 SERIES JE5120-HR HATCH
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-108
WEAR PARTS KITS-HR
DOGGING ASSEMBLY WEAR PARTS KIT FOR 803 SERIES JE6120-HR
(ALL PARTS IN BLUE)
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-506
DOGGING ASSEMBLY WEAR PARTS KIT FOR 805 SERIES JE5120-HR
(ALL PARTS IN BLUE AND GREEN)
CLICK TO SEE PARTS IN THIS KIT
JEKTHR-508
DOGGING MECHANISM PARTS
KEY ITEM JUNIPER
PART NUMBER
SELECTOR
RESULTS
QUANTITY
REQUIRED
A HANDWHEEL, UPPER, BRASS, 13 IN JE4120-85
B HANDWHEEL, LOWER, BRASS, 13 IN JE4120-84
C HANDWHEEL LOCK NUT JE4120-45
D SPINDLE 8-1/16" JE4120-34
E FLANGED BEARING WITH SEALS
JE4120-81
E BUSHING
JE5120-38
F SPIDER JE4120-42
G DOG CAM JE4120-53
H LONG DOG
JE4120-32
H SHORT DOG
JE4120-33
J CLEVIS PIN JE4120-43
K COTTER PIN JE4120-44
L DOG REST SLIDE PLATE
TWO USED PER DOG REST
JE4120-48
M DOG REST SPRING JE4120-47
N DOG ADJUSTING SCREW JE4120-49
P DOG REST JE4120-46
Q SPINDLE SLEEVE JE4120-36
R PACKING PLUNGER JE5120-37
  PACKING STRING
NOT ILLUSTRATED
JE5120-41
