DOOR, CARGO, WT
WITH WTQA ACCESS DOOR

PART NO. JEDC-5338

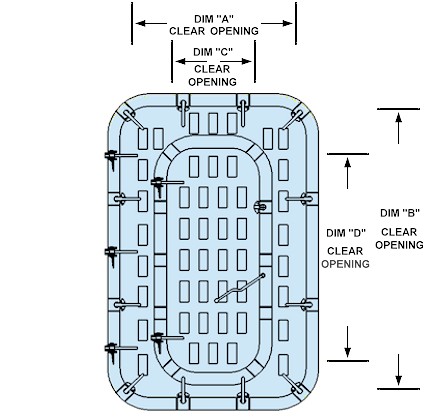

Cargo Door
GENERAL NOTES:
  1. SPECIFY DIMENSIONS "A", "B", "C" AND "D"
  2. MATERIAL:  STEEL PANEL AND FRAME
  3. HARDWARE:  VARIOUS
  4. STANDARD FINISH:  INORGANIC ZINC
    AND FORMULA 150 PRIMER
  5. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  6. OPTIONAL LOW SILL AVAILABLE
  7. ALTERNATE MATERIALS AVAILABLE
  8. TEST PRESSURE OF PERSONNEL DOOR EQUALS OR
    EXCEEDS TEST PRESSURE OF MAIN DOOR


JUNIPER DOORS
CARGO DOORS
REQUEST FOR QUOTATION

USE THE FORM BELOW OR, FOR A GENERIC RFQ FORM, CLICK HERE

DIM "A" CLEAR OPENING
DIM "B" CLEAR OPENING
DIM "C" CLEAR OPENING
DIM "D" CLEAR OPENING
SILL      STANDARD       LOW
QUANTITY
DOOR MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS
